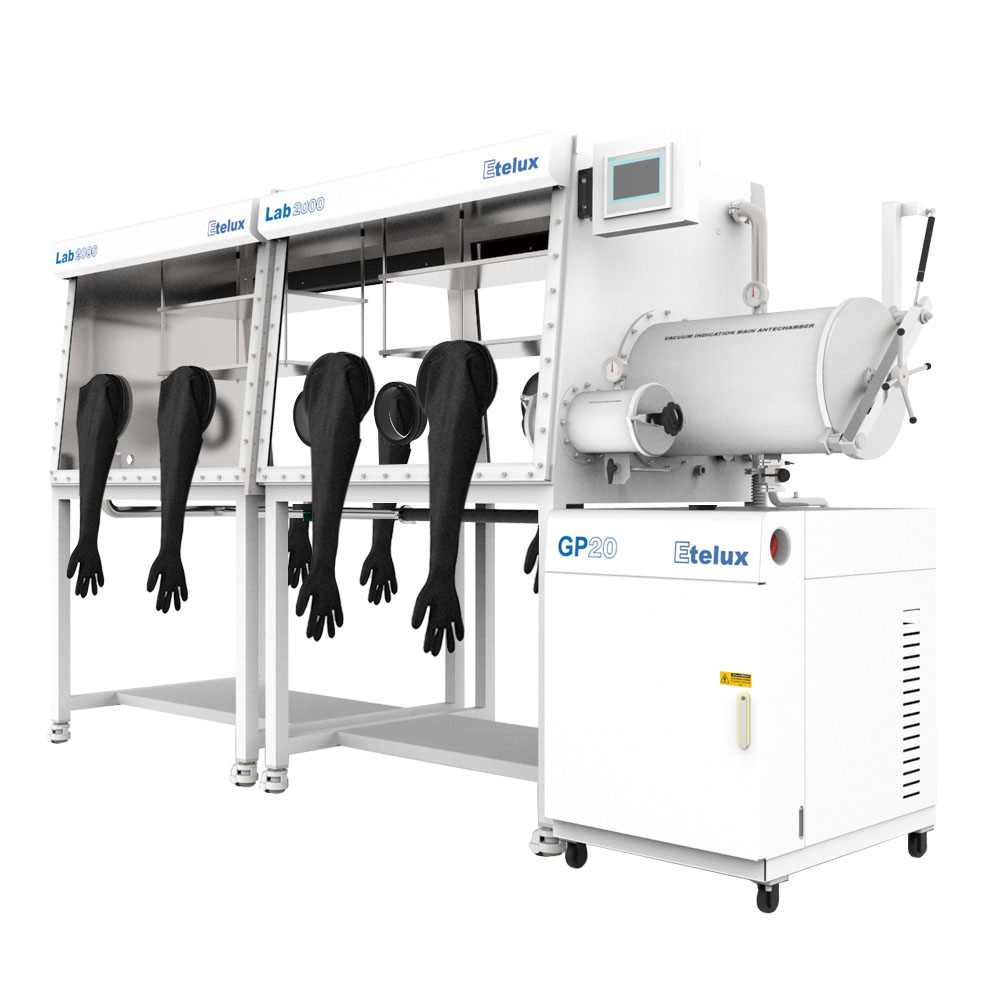

Lab2000 2400 Split Double-Sided Glove Box

Etelux Lab2000 2400 Split Double-Sided Glove Box

ISO9001 | CE | UL Certified · O₂&H₂O ≤1ppm · 24/7 Continuous Operation

Core Advantages

1. Precise Control of Ultra-High Purity Atmosphere: Stable O₂&H₂O content ≤1ppm and leakage rate ≤0.05vol%/h, fundamentally eliminating sample contamination and experiment failure to meet ultra-high cleanliness operation requirements.
2. Imported European Core Components: SIEMENS PLC touch screen + microcontroller, EDWARDS RV12 rotary vane vacuum pump. All key components are from world-renowned brands and comply with the latest European technical standards.
3. Fully Automatic Purification & Maintenance-Free: The GP20 purification system features a fully automatic regenerative single purification column (GP200 double column optional). The regeneration of water and oxygen removal materials is controlled by programs automatically, without frequent manual replacement.
4. 24/7 Stable Continuous Operation: Integrated valve structure optimizes pipelines to reduce leak points; all stainless steel material offers excellent corrosion resistance. The equipment can run non-stop all year round, suitable for uninterrupted operation of industrial production lines.
5. Humanized & Intelligent Operation: Foot-operated pressure control replaces manual adjustment, with working pressure freely settable at ±12mbar. The system has built-in functions of data recording, self-diagnosis and automatic restart after power failure, enabling easy and intuitive operation.
6. Multi-Station High-Efficiency Operation: 2400mm extra-long chamber with double-sided operable design, suitable for multi-person collaborative operation. The large transfer chamber is equipped with a sliding tray and features a lightweight, easy-to-open door, greatly improving operation efficiency.
7. Precise & Corrosion-Resistant Detection: The water analyzer has strong corrosion resistance and can be cleaned and reused for free three times for users in lithium battery and organometallic industries. The oxygen analyzer adopts a ZrO2 sensor, avoiding the short service life issue of fuel cells.
8. High-Quality Hardware Configuration: 304 stainless steel chamber and pipelines, optional tempered glass/polycarbonate front window and butyl rubber gloves of different thicknesses, HEPA high-efficiency filter with filtration precision <0.3μm for long-term durable use.

Core Application Scenarios

• Applicable Industries: Lithium battery manufacturing, organometallic synthesis, new material R&D, fine chemical industry, biomedicine, precision electronic manufacturing
• Operation Scenarios: High-precision hermetic experiments in laboratories, hermetic production in industrial lines, sample processing and preparation with strict requirements for water and oxygen control
• Target Customers: R&D and production departments of global university research laboratories, scientific research institutes, new energy enterprises, chemical enterprises and biomedical enterprises

Technical Parameter Table

Table

Category	Detailed Parameters
Core Chamber Parameters	Material: Stainless steel 1.4301 (304), thickness 3mmDimensions: 2400mm(L)×750mm(W)×900mm(H)Volume: 0.8m³Leakage rate: ≤0.05vol%/hGlove port: 220mm caliber, O-ring sealed, optional hard aluminum alloy/polyoxymethyleneGloves: Butyl rubber, optional thickness 0.4mm/0.8mm
Front Window & Basic Accessories	Front window: 8mm tempered glass/10mm polycarbonate (optional), dimensions 1123mm(L)×839mm(H)Filter: Inlet & outlet double filters, filtration precision <0.3μmLighting: LED lighting at the top of the front windowSupport/Casters: Height-adjustable support + movable universal castersPipelines: All stainless steel gas flow pipelines and accessories
GP20 Gas Purification System	Core function: Automatic H₂O&O₂ removal, O₂&H₂O ≤1ppmPurification column: Fully automatic regenerative single column (GP200 double column optional)Gas circulation: Hermetic oil-free vacuum circulation, oil-free high-speed fan (air volume 0-100m³/h)Working voltage: AC230V/50-60Hz/10A / AC115V/50-60Hz/20A (optional)Working gas: N₂/Ar/He (purity ≥99.999%)Regeneration gas: 5%-10% H₂ + the above working gas (purity ≥99.999%)Valve: Electromagnetic high vacuum valve
Vacuum Pump	Model: EDWARDS RV12 rotary vane vacuum pump (dry pump optional)Configuration: Equipped with oil mist filter and gas ballast controlFlow rate: 12m³/h (7cfm)Vacuum degree: ＜2×10⁻³mbar
Analytical Detection Module	Oxygen analyzer: GE oxy.IQ™, ZrO2 sensor, measuring range 0-1000ppmWater analyzer: GE VeriDri™, high corrosion resistance, measuring range 0-500ppmAnalyzer dimensions: 205mm(L)×80mm(W)×60mm(H)
Auxiliary Purification System	Cleaning system: The chamber automatically completes gas replacement after setting time and pressureSolvent purification system: 304 stainless steel material, internal Φ220mm×450mm, equipped with high-quality activated carbon
Control System	Core configuration: SIEMENS microcontroller + operation touch screenCore functions: Automatic data recording by memo, self-diagnosis, automatic restart after power failure, pressure self-adaptation, password protectionPressure control: Foot-operated adjustment, automatic pressure control, working pressure ±12mbar

Optional Configurations & Order Code Interpretation

1. Optional Configurations

1. Function Upgrades: Automatic cleaning function, organic solvent adsorption system, openable front window
2. Transfer Chambers: A0(φ360×600mm), A1(φ390×600mm), A2(φ150×330mm), A3(400×300×300mm)
3. Auxiliary Equipment: Refrigerator (18L/32L, -35℃, 304 stainless steel, R404 environmentally friendly refrigerant), Heating chamber (adapted to large transfer chamber, 200℃, temperature control ±1℃)

2. Order Code Interpretation

Code Format: E-【Chamber Length】【Structural Configuration】【Function Options】-【Transfer Chamber/Other Functions】

Table

Code Position	Identifier	Meaning
Chamber Length	1200/1500/1800/2400	Corresponding chamber length in mm, 2400 is the main model for this promotion
Structural Configuration	U/S/D	U=Standard Integrated; S=Standard Split; D=Double-Sided Operable
Function Options	P/G/O	P=Automatic Cleaning; G=Water & Oxygen Purification (≤1ppm); O=Organic Solvent Adsorption
Transfer Chamber	A0/A1/A2/A3	Corresponding to different specifications of transfer chambers, not marked if none
Other Functions	FW/18F/32F	FW=Openable Front Window; 18F/32F=Refrigerator with corresponding volume
Code Example: E-2400SDPG-A3 (2400mm split double-sided glove box with automatic cleaning + water & oxygen purification + square transfer chamber)

Procurement & Cooperation Benefits

✅ Tiered wholesale discounts for global bulk procurement, free international shipping for orders meeting the quota

✅ Support for sample testing & on-site inspection of equipment operation effect, with one-on-one technical consultants providing full-process docking

✅ Customization of chamber configurations and functional modules according to operation requirements, with guaranteed delivery time via large-scale production

✅ Clear quotation sheets for all configurations, with marked prices and no hidden costs

Quality & After-Sales Guarantee

Basic Warranty (Standard)

1. 1-year free warranty for the whole machine, exclusive protection for core components, and lifelong maintenance service provided
2. 400-086-8156 24/7 customer service hotline, with one-on-one online answers to fault problems

365 Peace of Mind Extended Warranty Service (Optional)

1. No labor cost for maintenance after the warranty period (consumables excluded), with controllable maintenance cost and budget-based investment
2. Exclusive discounts for hardware upgrades and consumables procurement, with free technical training upgrade services provided
