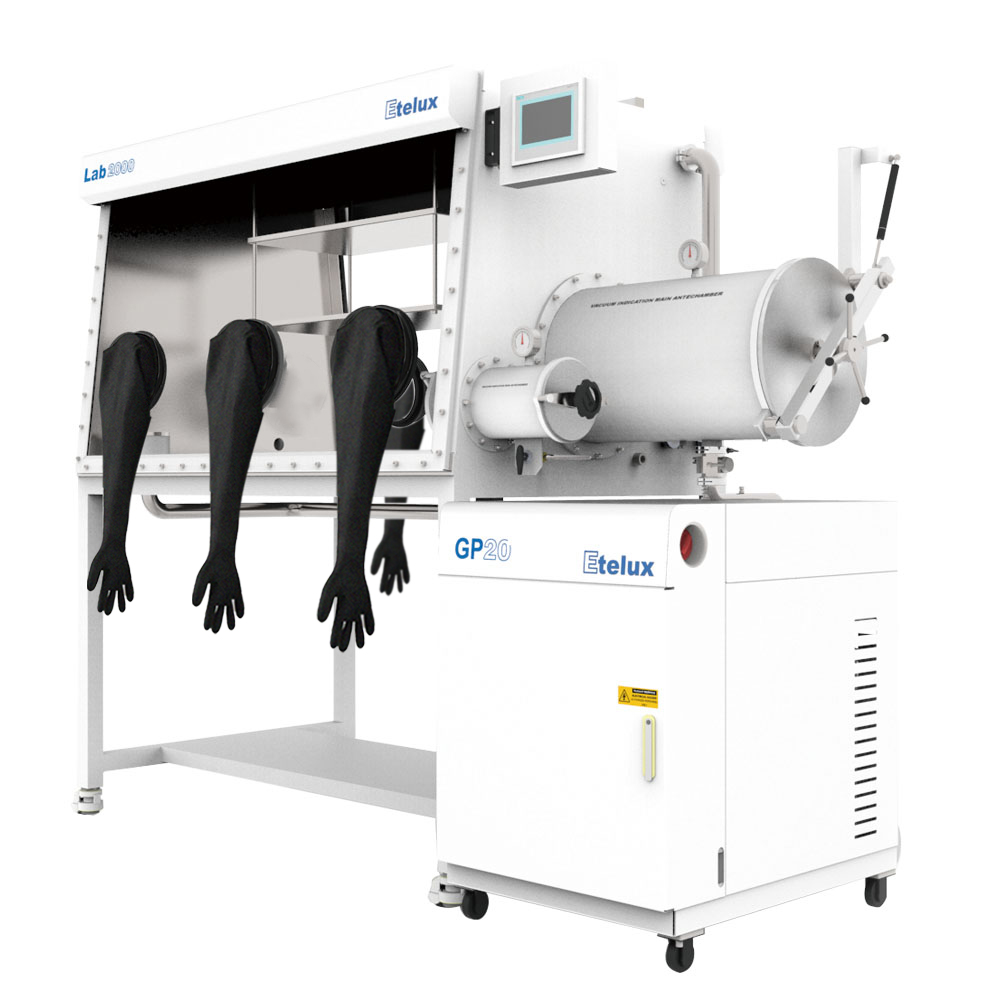

Etelux Lab2000-1500 Split Double-Side Glove Box | Inert Gas Purification System

H₂O & O₂ ≤1ppm | Leakage ≤0.05vol%/h | For Lithium Battery/Lab/Organometallic R&D

A high-performance closed-loop purification system engineered for anhydrous & oxygen-free inert atmosphere (≤1ppm H₂O/O₂). Designed for lithium battery manufacturing, organometallic synthesis and lab research, it features full auto water-oxygen adsorption, 7×24h stable operation and imported core components, solving moisture/oxygen interference for precise research and production.

Core Advantages

✅ Ultra-Low Contamination Control | GP20 purification system, auto H₂O/O₂ removal, ≤1ppm precision

✅ Ultimate Airtightness | All stainless steel pipelines, integrated valves, leakage ≤0.05vol%/h

✅ Imported European Core Parts | SIEMENS PLC touch screen, EDWARDS RV12 vacuum pump, reliable performance

✅ Fully Auto Intelligent Operation | Auto-regenerable purification column, foot pressure control, auto gas replacement

✅ 24/7 Continuous Running | Oil-free high-speed fan, closed gas circulation, ±12mbar auto pressure control

✅ Professional Detection | ZrO₂ oxygen sensor, corrosion-resistant water analyzer (3 free cleanings for reuse)

✅ Humanized Design | Split double-side operation, movable casters, height-adjustable stand, easy operation

✅ High-Quality Material | 3mm 304 stainless steel body, optional tempered glass/polycarbonate front window

Key Technical Specs

Main Body

• Material: 304 Stainless Steel (1.4301), 3mm thick
• Dimensions: 1500(L)×750(W)×900(H)mm | Volume: 0.8m³
• Glove Port: 220mm caliber, O-ring sealed | Gloves: Butyl rubber (0.4/0.8mm optional)
• Filtration: HEPA filter, <0.3μm precision | Leakage Rate: ≤0.05vol%/h

Purification & Circulation

• Purification System: GP20 (GP200 double column optional), auto regeneration
• Vacuum Pump: EDWARDS RV12, 12m³/h flow, <2×10-3mbar vacuum
• Circulation Fan: Oil-free, 0-100m³/h air volume | Working Gas: N₂/Ar/He (≥99.999%)
• Voltage: AC230V/115V optional | Auto gas replacement & pressure control

Analysis Equipments

• Oxygen Analyzer: 0-1000ppm (GE oxy.IQ™) | Water Analyzer: 0-500ppm (GE VeriDri™)

Optional Configurations

• Solvent Purification System (activated carbon adsorption)
• Low-Temp Refrigerator (-35℃, 18L/32L optional)
• Heating Chamber (200℃, ±1℃ precision)
• Multiple Transition Chambers (φ360/φ150/square type)
• Openable Front Window & Customized Accessories

Certification & Warranty

✅ ISO9001 | CE | UL Certified

✅ 1-Year Free Warranty + Lifetime Maintenance

✅ Exclusive 365 Peace of Mind Extended Warranty Service

✅ 24/7 Customer Hotline: 400-086-8156

✅ Service Centers in Beijing/Shanghai/Guangzhou/Wuhan/Chengdu/Xi’an/Changchun

Application Scenarios

Widely used in lithium battery R&D, organometallic synthesis, organic chemistry, semiconductor preparation, precision component processing, nanomaterial research, pharmaceutical intermediate synthesis and all anhydrous/oxygen-free/dust-free inert atmosphere required fields.

Customization & Order

Full Customization Supported – Order No. Rule: E-Cabinet Length-Structure-Function-Transition Chamber-Options

• Cabinet Length: 1200/1500/1800/2400mm optional
• Structure: Integrated (U)/Split (S)/Double-Side (D)
• Core Functions: Auto Cleaning (P)/Water-Oxygen Purification (G)/Solvent Adsorption (O)

Inquire Now for Exclusive Quotation

✅ In Stock for Immediate Delivery

✅ Free Lab/Workshop Layout Design

✅ 1-on-1 Technical Support & On-Site Installation

National Service Hotline: 400-086-8156
